Here’s a primer on condensation clouds, sonic booms and Prandtl-Glauert Singularity.
Pictures taken at Axalp always rise the same question: people want to know if the condensation clouds surrounding the aircraft represent some kind of visual manifestation of the “sonic boom” or some other phenomenon related to the flying at transonic speeds.
Actually, what appears in those pictures is just the effect of the quick depression on the flight surfaces that brings the water vapour contained in the air to the condensation temperature.
It is a common phenomenon in high-G maneuvers well below transonic speed, when the depression on the upper side of the wing increases fast; it can even be observed at sea level, provided the amount of moist is significant and the air temperature is hot enough.

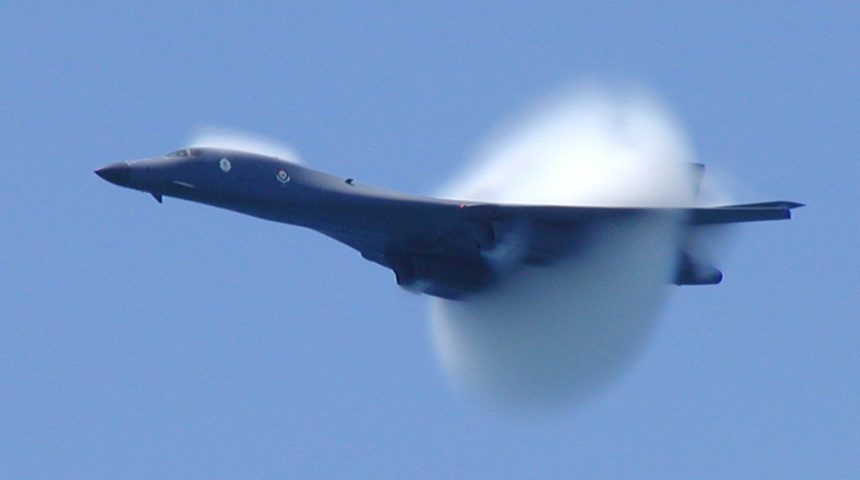

Something quite different are the conic-shape clouds that are generated by aircraft flying at speeds next to the sound’s speed (like the ones in the top image, depicting a B-1 at Pensacola airshow in 2003).
They are not visual effects of the so-called “sonic booms” nor are they the sign of the breaking of the sound barrier: when an aircraft flies at transonic speed (around Mach 1.0), any of its convess parts (canopy, intakes, etc) cause a rapid decrease of the temperature and pressure with subsequent creation of the cloud.
The variation in temperature caused by the perturbation of the airflows is called Prandtl-Glauert Singularity. The particular shape of the cloud associated to the singularity is caused by shockwave generated where the air flow reaches supersonic speed.
The following video shows a series of pictures the clouds caused by the Prandtl-Glauert Singularity:
More from The Aviationist
The Incredible Armada of Aircraft Behind 1969’s Battle of Britain Film
On Sept. 15, 1969, cinema audiences were treated to a dramatic portrayal…
US Approves Possible Sale of Nine KC-46A Pegasus Tankers for Japan
The latest deal would take the number of KC-46As in Japan’s inventory…
U.S. State Department Approves $7.2B Sale Of F-35 Jets To Romania
The Foreign Military Sale’s approval comes after Romania announced the plan to…
Wooden Avengers, Target Kites, and Draftees: How America’s First New Deal Community Took the Fight to the Axis
Situated in the quiet hills of West Virginia, the small town of…
DARPA Awards BAE Systems $4 Million for Autonomous Beyond Visual Range Air Combat Program
Autonomy solutions for BVR combat will initially be developed and demonstrated on…
Now let’s talk about sonic booms.
The characteristic loud bang or “sonic boom“ is the sound associated with the shock waves created by an object traveling through the air faster than the speed of sound. In fact, when an aircraft passes through the air it creates a series of pressure waves around it similar to the bow and stern waves created by a boat on the water. These waves travel at the speed of sound. As the speed of the aircraft increases, the waves are forced together, or compressed, because they cannot get out of the way of each other. Eventually they merge into a single shock wave, which travels at the speed of sound.
The shock, due to the quick “jump” from a low pressure / low temperature / supersonic airflow zone to a high pressure / high temperature / subsonic speed zone that is perceived by the human brain as a loud “bang”.
Here’s how NASA describes the phenomenon: “The shock wave forms a “cone” of pressurized or built-up air molecules, which move outward and rearward in all directions and extend all the way to the ground. As this cone spreads across the landscape along the flight path, it creates a continuous sonic boom along the full width of the cone’s base. The sharp release of pressure, after the buildup by the shock wave, is heard as the sonic boom. The change in air pressure associated with a sonic boom is only a few pounds per square foot — about the same pressure change experienced riding an elevator down two or three floors. It is the rate of change, the sudden changing of the pressure, which makes the sonic boom audible.”
Actually, the “sonic boom” has nothing to do with the sound barrier (and there’s no “barrier” at all, either): it can be heard when the aircraft is ALREADY flying at supersonic speed not far from our ears.
The following video gives an idea of the sound of a Concorde flying at supersonic speed heard from the ground:
