You will not find many official photographs of the Israeli airmen. Even less showing their custom-modified flight gear.

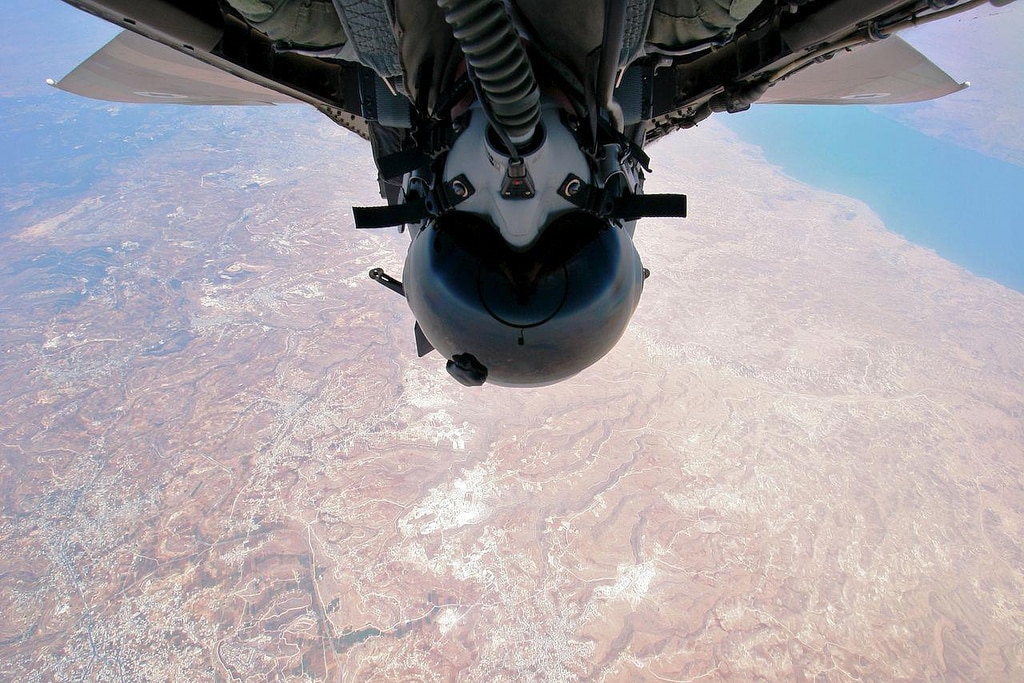

However, an interesting image released by the Israel Defence Force, not only shows an Israeli Air Force F-15I backseater during an inverted climb above Judea and Samaria (with the Dead Sea clearly visible on the right), but gives also a close up view the visor of his DASH (Display And Sight Helmet).
Image credit: IDF
Obviously, the picture doesn’t provide many details about the helmet. Still, it gives an idea of the shape of the visor where information imagery (including aircraft’s airspeed, altitude, weapons status, aiming etc) is projected so as to enable the pilot to look out in any direction with all the required data always in his field of vision.
More from The Aviationist
The Incredible Armada of Aircraft Behind 1969’s Battle of Britain Film
On Sept. 15, 1969, cinema audiences were treated to a dramatic portrayal…
US Approves Possible Sale of Nine KC-46A Pegasus Tankers for Japan
The latest deal would take the number of KC-46As in Japan’s inventory…
U.S. State Department Approves $7.2B Sale Of F-35 Jets To Romania
The Foreign Military Sale’s approval comes after Romania announced the plan to…
Wooden Avengers, Target Kites, and Draftees: How America’s First New Deal Community Took the Fight to the Axis
Situated in the quiet hills of West Virginia, the small town of…
DARPA Awards BAE Systems $4 Million for Autonomous Beyond Visual Range Air Combat Program
Autonomy solutions for BVR combat will initially be developed and demonstrated on…
DASH helmets enable pilots to aim weapons against enemy aircraft merely by pointing their heads at the targets. Based on the pilot’s Line-Of-Sights (LOS) relative to the aircraft measured by the DASH and transferred to other aircraft systems, all the on board systems and weapons are enslaved to the target.
Therefore the DASH is quite similiar to the U.S. JHMCS (Joint Helment Mounted Cueing System) used by F-16s, F-15s and F-18s (not by F-22s): they are normal Gentex helmets fitted with Israel’s Elbit Systems optics.
