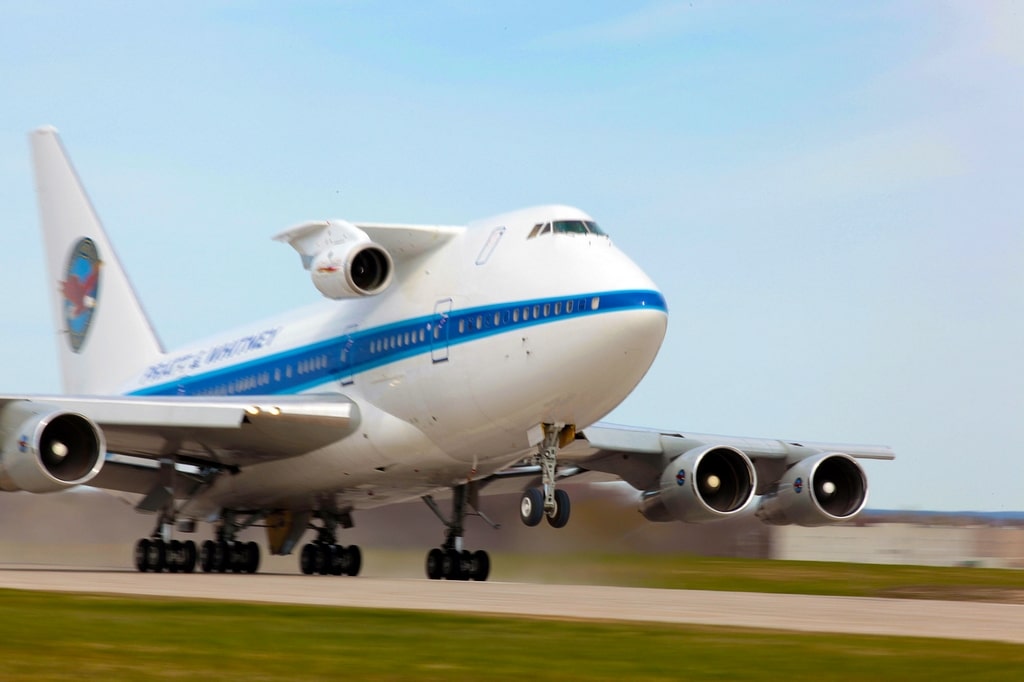

The following pictures show the Pratt & Whitney’s Boeing 747SP flying test bed at the company’s Mirabel Aerospace Centre, in Mirabel, Quebec, Canada, with a PW1217G engine flying on a specially designed stub wing.
The “fuselage’s engine” is a PW127G, designed for the Mitsubishi Regional Jet (MRJ) aircraft, that was attached to the mini-Jumbo to perform flight testing needed to complement the PurePower Geared Turbofan engine family’s sea level data collected during ground engine testing and to validate performance, operability and in-flight starting.
Not only the somehow weird test bed platform is interesting. The PurePower engine itself is worth a mention. This kind of new generation engine family uses an advanced gear system allowing the engine’s fan to operate at a different speed than the low-pressure compressor and turbine in such a way to improve engine’s efficiency, environmental emissions and noise.
However, along with the reduced environmental impact, the new geared turbofans provide a better FOD (Foreign Object Damage) resistance: as pointed out by a recent AOL Defense article, since they have a much higher “bypass ratio” (meaning that a higher amount of air sucked by the engine bypasses the core of the engine where air is mixed with fuel and ingnited), there’s a higher chance that anything sucked by the engine bypasses the most delicate part of the engine.
Furthermore, the intake fans don’t run as fast as previous generation engines and so they don’t behave as eager vacuum cleaners and the shape of the new engine is such that it can be mounted higher (on the wing) than traditional engines, increasing the distance from the ground and from all those objects that could damage it.
Although these engines are being developed for the civilian airliners, they could be much useful for all those military planes called to operate from dirty and unpaved airstrips.
More from The Aviationist
The Incredible Armada of Aircraft Behind 1969’s Battle of Britain Film
On Sept. 15, 1969, cinema audiences were treated to a dramatic portrayal…
US Approves Possible Sale of Nine KC-46A Pegasus Tankers for Japan
The latest deal would take the number of KC-46As in Japan’s inventory…
U.S. State Department Approves $7.2B Sale Of F-35 Jets To Romania
The Foreign Military Sale’s approval comes after Romania announced the plan to…
Wooden Avengers, Target Kites, and Draftees: How America’s First New Deal Community Took the Fight to the Axis
Situated in the quiet hills of West Virginia, the small town of…
DARPA Awards BAE Systems $4 Million for Autonomous Beyond Visual Range Air Combat Program
Autonomy solutions for BVR combat will initially be developed and demonstrated on…
Larger geared turbofans for wide-bodies could be equip future and current cargo planes, tankers, AWACS, JSTARS, and maybe the future Air Force One too (the Presidential VC-25A is equipped with General Electric engine, though).
As already explained in a previous post, in NASA, Pratt & Whitney and U.S. Air Force have parternered to develop and test technology for improved sensors that can detect changes in vibration, speed, temperature and emissions which are symptomatic of engine problems. Such sensors should be able to alert pilots of destructive volcanic ash particles as well, before the engine is damaged.
Image credit: Pratt & Whitney
