First image showing Northrop Grumman’s full-up Next Generation Jammer-Low Band (NGJ-LB) Demonstration of Existing Technologies (DET) electronic warfare pod being tested.

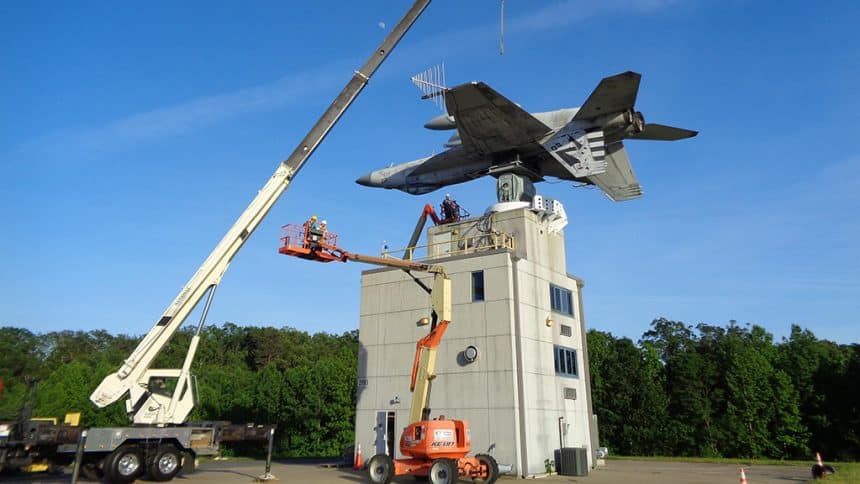

On Jun. 22, 2020, Naval Air Systems Command (NAVAIR) Airborne Electronic Attack Systems Program Office (PMA-234) released the first image of the NGJ-LB pod on the belly (centerline) of a Super Hornet/Growler airframe [externally the two types are almost identical, the main difference is the presence, on the EA-18G, of the ALQ-218 electronics pods instead of the missile rails on the wingtips] being tested at the Facility for Antenna and Radar cross-section (RCS) Measurement at Naval Air Station Patuxent River, Maryland, in May/June 2020.
Interestingly, RCS isn’t a factor in these jammer pod tests. They’re looking at best/cleanest possible radiating performance from the antennas in the pod form factor. Pod was radiating outward, surrounding towers were receiving and measuring. So, although it was carried out in the RCS Measurement facility, it was not an RCS test.
As already reported in detail in an article we published at the beginning of the year, the NGJ (Next Generation Jammer) is a U.S. Navy program to augment, and ultimately replace the EA-18G Growler aircraft’s aging ALQ-99 TJS developed in the 1970s for the (retired) EA-6B Prowler.
The NGJ program aims to give the EA-18G fleet advanced airborne electronic attack capabilities through three frequency-focused increments – high-band, mid-band and low-band: in other words, the Growlers will replace the TJS pods operating in the 509 MHz to 18 GHz waveband, using three different pods, designated NGJ-LB (also known as Block/Increment 2), NGJ-MB (Capability Block/Increment 1), and NGJ-HB (Block/Increment 3) and directed specifically against the low- (100 MHz to 2 GHz waveband), mid- (2 GHz to 6 GHz), and high-band (6 GHz to 18 GHz) sections of the overall threat spectrum.
The first Engineering and Manufacturing Development (EMD) pod, a test article used to perform ground and aircraft integration testing, of the Next Generation Jammer Mid-Band (NGJ-MB) or Increment 1 pod was delivered by Raytheon to the U.S. Navy last August and has been mounted on an EA-18G Growler of the Air Test and Evaluation Squadron (VX) 23 Growler at Naval Air Station Patuxent River, Maryland, to start mission systems testing and qualification.
The pod is being used for both outdoor tests at the Facility for Antenna and Radar cross-section (RCS) Measurement (as shown in the photo) and at the indoor Air Combat Environmental Test and Evaluation Facility also located at Pax River.
