The shots give an idea of the size of the GBU-57 MOP (Massive Ordnance Penetrator).
The B-2 Spirit stealth bombers of the 509th Bomb Wing based at Whiteman Air Force Base, Missouri, are the only aircraft in the U.S. Air Force inventory currently capable to operationally drop the massive 30,000-lb (14,000 kg) GBU-57 Massive Ordnance Penetrator.
Sometimes mistaken with the 11-ton, parachute deployed, GBU-43B MOAB (Massive Ordnance Air Blast) also known as “Mother Of All Bombs”, the largest conventional air dropped weapon ever employed by the U.S. military, dropped by an Air Force Special Operations MC-130 Combat Talon II on an ISIS cave complex target in Afghanistan, for the very first time on Apr. 13, 2017, the 14-ton GBU-57 MOP is a 20-foot long GPS-guided bomb said to be able to penetrate 200 feet of concrete before exploding.
The B-2 can carry two MOPs in its internal bomb bay.
Images of the MOP are pretty rare. In 2013, we published here an interesting photo of a B-2 sitting next to a GBU-57. In December 2018, we found footage of a B-2 dropping a MOP in a video of the 393rd Bomb Squadron, one of the units that operate the Spirit stealth bomber as part of the 509th BW.
At the beginning of April, the 131st BW, a unit of the Missouri Air National Guard, also stationed at Whiteman Air Force Base, posted some photos including one depicting an inert GBU-57, used for training purposes.
Some more images have just been posted by the 509th BW Facebook page. As explained in the post, “509th Munitions Squadron added two Massive Ordnance Penetrators (MOPs) to their arsenal, so they can test their performance.”
More from The Aviationist
The Incredible Armada of Aircraft Behind 1969’s Battle of Britain Film
On Sept. 15, 1969, cinema audiences were treated to a dramatic portrayal…
US Approves Possible Sale of Nine KC-46A Pegasus Tankers for Japan
The latest deal would take the number of KC-46As in Japan’s inventory…
U.S. State Department Approves $7.2B Sale Of F-35 Jets To Romania
The Foreign Military Sale’s approval comes after Romania announced the plan to…
Wooden Avengers, Target Kites, and Draftees: How America’s First New Deal Community Took the Fight to the Axis
Situated in the quiet hills of West Virginia, the small town of…
DARPA Awards BAE Systems $4 Million for Autonomous Beyond Visual Range Air Combat Program
Autonomy solutions for BVR combat will initially be developed and demonstrated on…

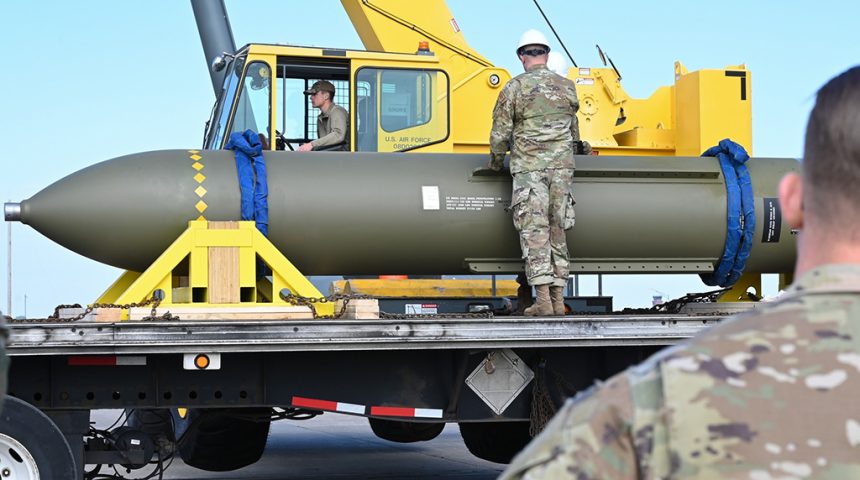

These photos are particularly interesting as they show a “Live” GBU-57: as opposed to the blue one, the yellow band around the nose is used to identify bombs with high-explosive filler. However, in this case, the stencil is slightly different than that you can see on other weapons: the band is checkered rather than solid.
Also, one of the shots gives a pretty clear shot of the weight and types of fillers in the bomb. 4400 lbs of AFX-757, an explosive recently developed by the AFRL for use in penetrating bombs, & 762 (752?) lbs of PBXN-114 for a total of ~5,162 lbs of HE filler. 2/2 @FranticGoat pic.twitter.com/mzuXGwKTWk
— IntelWalrus (@IntelWalrus) May 3, 2023
